CIGS Module (PV Panel)'s Advantages

1. Performs Better in Low-light Condition & Superior Shading Tolerance

-The wavelength of the light from the sun changes by sunny or cloudy. The wavelength is shorter when cloudy, but CIGS actually operate at higher than 100% relative efficiency.
-Even less shading will cause mass reduction to convertional Silicon panel, while CIGS loss proportional to shaded area.

2. Less Temperature-rated loss

-Materials used on Solar Module's film affects the temerature&environment rated loss.
-CIGS has less temperature-rated loss, even on roof which is the hotest part of a building.

Others

-Aesthetically appealing all-black appearance.
-Framed module designed for easy use with industrystandard mounting systems.
-Etched, unchangeable serial numbers for full traceability of each module.

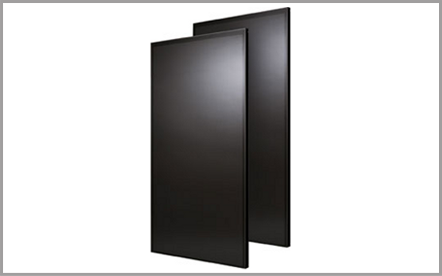

SOLAR POWER SYSTEM(tsmc solar)

Features

-Advanced proprietary CIGS thin-film technology
-Plus sorting at +5 W to -0 W
-Up to 3% additional energy yield due to light soaking effect
-Low temperature coefficient provides energy yield benefits
-Aesthetically appealing all-black appearance
-Framed module designed for easy use with industry-standard mounting systems
-Etched, unchangeable serial numbers for full traceability of each module

Quality and Safety

-Dual glass module enhance module durability and prevent micro-cracks
-Free of potential induced degradation (PID) effects
-Certified for harsh environments: Salt Mist Corrosion (IEC 61701), Blowing Sand Resistant (DIN EN60068-2-68) and Ammonia Corrosion Test (IEC 62716)
-UL, IEC and MCS certified
-California Energy Commission (CEC) listed
-Rated for snow and wind loads up to 2,400 Pa
-Manufactured at an ISO 9001: 2008, ISO 14001 and OHSAS 18001 certified facility

Warranty

-Product warranty*: 10 years for material and workmanship

-Power output warranty*: 90% at 10 years and 80% at 25 years of minimum rated power output

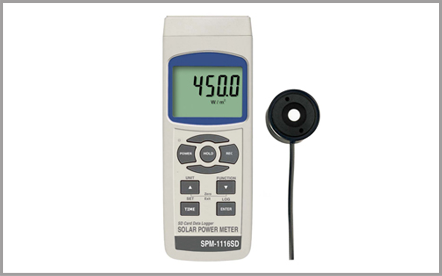

Solar Power Meter

Model: SPM-1116SD

functions :
- Solar power, Power integration, Transmission.
- Wide spectral range.
- Excellent long term stability.
- Select either W/m^2 or Btu / (ft^2xh) power units.
- Cosine corrected.
