Communication & Collection

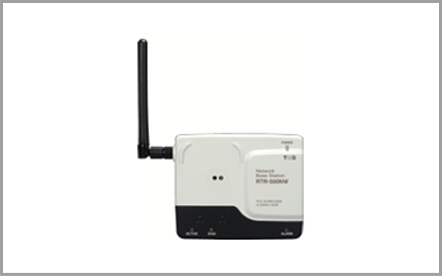

RTR-500NW/AW - Network Base Station

The RTR-500NW/AW is a network base station with built-in Wireless and LAN Communication Capabilities. The RTR-500NW/AW can be set up to automatically download recorded data from an RTR-500 Series Wireless Data Logger via wireless communication, and then send that data via a network to an e-mail address, FTP folder or T&D’s own WebStorage server. It can also monitor for warnings and send warning reports across a network to specified addresses.

The RTR-500NW/AW comes in two models: RTR-500NW for a wired LAN and the RTR-500AW for a wireless LAN connection.

Communication & Collection

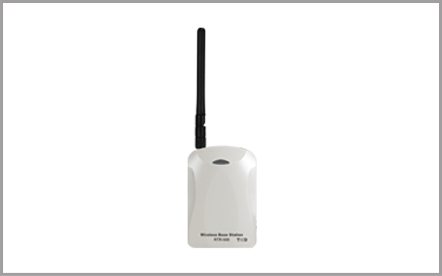

RTR-500 - Wireless Base Station / Repeater

The RTR-500 can be used as either a “Base Unit” for our RTR-500 Wireless Data Logger Series or a “Repeater” for extending wireless communication range. Easy-USB connection for performance as a Base Unit makes it perfect for on-site use. By registering the RTR-500 as a Base Unit, it is possible to Download Recorded Data and Current Readings from Remote Units and send the data by e-mail or FTP to a designated address. Moreover, by sending the recorded data to our online service "T&D WebStorage Service", it is possible to carry out Monitoring of Current Readings and/or Warnings as well as share the data via a PC web browser.

Communication & Collection

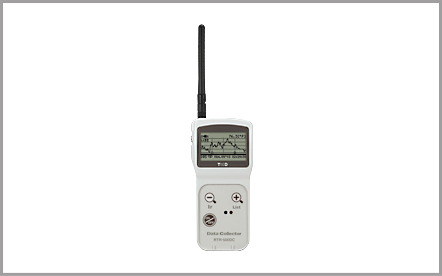

RTR-500DC - Portable Data Collector

The RTR-500DC is a user-friendly wireless communication Data Collector designed for hand-held portability. By carrying out wireless communication with Data Loggers, it is possible to start and stop recording and collect data from loggers placed in remote locations without having to manually gather them. The collected data can then be easily displayed in graph form in the LCD display of the RTR-500DC, enabling the immediate on-the-spot checking of data.

Communication & Collection

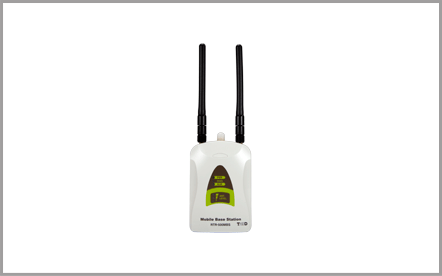

RTR-500MBS-A - Mobile Base Station

T&D's RTR-500MBS-A is a Mobile Base Station equipped with mobile network capabilities. The RTR-500MBS-A supports 3G and GSM networks. The RTR-500MBS-A enables users to setup remote or in-vehicle data collection via wireless communication, to automatically send data via mobile network. As long as the Base Station is within the mobile network coverage area, it can be used in any location where LAN connection is difficult. With the warning monitoring function, the RTR-500MBS-A Base Unit monitors Remote Units for user-set alarm warnings, and sends warning report mails via e-mail or SMS, enabling users to always stay in the know about changes in measurement readings.

Communication & Collection

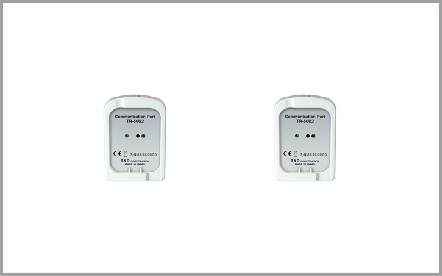

TR-50U2 - Communication Port

TR-50U2 is a Communication Port to download data measured and recorded by Thermo Recorder TR-51i / 51S and/or TR-52i / 52S to your computer.

The collected data can be downloaded to your computer via the included software "T&D Recorder for Windows (TR-5,7xU)" where you can use the software to create colorful graphs , tables, export text files, as well as manage files and control printing.

Communication & Collection

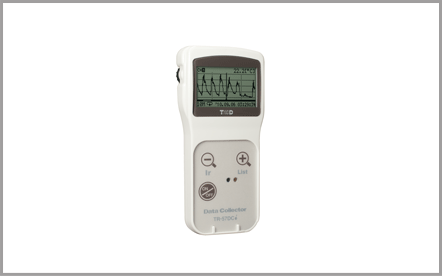

TR-57DCi - Data Collector Infrared Communication Type

The TR-57DCi is a Data Collector designed to collect recorded data from data loggers (T&D Thermo Recorders and Voltage Recorders). It can be used to gather and check recorded data on the spot without having to manually gather the data loggers. Recording settings such as “ Recording Interval” and “Recording Start” can also be made directly from the TR-57DCi into the logger. Compatible devices for use with the TR-57DCi include TR-5i Series (Infrared Communication Type), TR-5S/5 Series, RTR-500/5 Series, TR-7Ui/7U/7S Series, and VR-71 Data Loggers.
